The Telis 1 or 5 Channel Remote Control easily allows for complete control over your motorized window coverings. Different color options allow for a clean look that will match any home decor. Whether you would like to have the ability to control individual shades or groups of shades the Telis Remote is the perfect solution. The Somfy Telis remote control will operate the entire line of Somfy RTS motors including Drapery Tracks, Roller Shades, Roman and fabric based shades, Cellular Shades, Pleated Shades, Silhouette, Vignette, Pirouette and Horizontal Blinds.
Somfy Telis 1 Pure RTS RF Remote 1 Channel The Somfy Telis 1 Pure RTS (Radio Technology Somfy) RF (Radio Frequency) Remote Control communicates with all Somfy RTS RF controllable devices. It is a single channel RF remote that can control an unlimited number of shades. All shades assigned to the Telis 1 Remote will operate simultaneously. The Telis remote can control an unlimited amount of motors or RTS interfaces. The remote controls Up, Down, Stop and 1 user defined preset command. RTS technology RF Control devices have a 65ft range through 2 concrete walls and nearly a 100ft clear path range. Somfy Telis 4 Pure RTS Remote 5 Channel The Somfy Telis 4 RTS (Radio Technology Somfy) remote control Somfy Telis 5 RTS RF Remote Specifications: • Easily selectable 5 Channel RF Remote • Controls unlimited number of motors simultaneously • 65 Foot Range (Use an RTS repeater to increase range) • Dimensions: 4.75in L x 1.75in W x 0.75in H • Includes: Wall Button and mounting hardware
Somfy Telis 20 Composio RTS Remote 20 Channel Total Home Control Control 20 individual window coverings or 20 groups of window coverings. Remote control to centralize and control the movements of openings according to zones in the home (ground floor, upstairs, facades exposed to wind or sun, etc.). All the specified motors in a selected group go up or down or adjust to a favorite "My" position simultaneously. On-screen display makes it easy to read and navigate through settings. Choice of 2 finishes (Silver as shown or Black - "Lounge").
Industry's first dimmer for natural light with central scroll wheel for precise adjustment of horizontal blind slats. Five channels provide control of five individual window coverings or five individual groups of window coverings. Highlighted "my" button provides easy access to a user defined preset position. Streamline shape and rubber edging for increased durability. Unique design provides a hanger and pin allowing it to mount on the wall for easy storage and access. Available in 2 colors Silver or Black.
HAND HELD REMOTES
The Somfy Telis Collection
Telis RTS Remote Instructions 1.5Mb Somfy RTS Troubleshooting Guide .2Mb
Available in 4-Colors!
Somfy Telis Collection Brochure
(980kb)
download pdf
•
• Single Channel RF Remote
• Controls unlimited number of motors simultaneously
• 65 Foot Range (Use an RTS Repeater to increase range)
• Dimensions: 4.75in L x 1.75in W x 0.75in H
• Includes: Wall Button and mounting hardware
• Power: 3V Lithium battery, CR-2430
• Communicates with all Somfy RTS RF devices
• Power: 3V Lithium battery, CR-2430
• Somfy Part #: 1810633
• Communicates with all Somfy RTS RF devices
• Controls unlimited number of motors simultaneously
• 65 Foot Range (Use an RTS repeater to increase range)
• Dimensions: 5.75in L x 2.25in W x 1.50in H
• Includes: Wall Button and mounting hardware
• Power: 3-'AAA' Alkaline or Lithium batteries Somfy Composio RTS Programming Instruction 1.9Mb

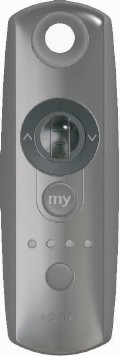

Somfy Telis 5 Modulis RTS Remote 5 Channel
Telis Modulis Brochure
(1.0 MB)
download pdfThe Modulis remote control is to be used with the new wire-free RTS tilt motors for 2" blinds. It is available as a 5-Channel remote only and will operate an unlimited amount of RTS motors or 5-Groups of motors. See the "Tilt Wire Free Motor" in the "Wire Free Motors" section of this website for more information about the motor.
| WALL SWITCHES |
Somfy DecoFlex WireFree RTS 1 Wall SwitchWireless wall switch with built in RTS (Radio Technology Somfy) that may be personalized for intuitive control of one window covering or one group of window coverings. Up, down and stop functions and "My" favorite position on each channel. The DecoFlex wall switch can be installed independently or next to an existing light switch in the same gang box. Choice of 3 finishes (White, Ivory and Black). Use an RTS repeater to extend the range of this product. This wall switch will fit in a single gang box or can be cut directly into drywall next to lighting controls and comes with spearate drywall ring and cover plate. Switch may be personalized with pre-printed buttons that are easily installed or removed. A pre-printed sticky label sheet comes with the switch containing the most popular room, area and treatment names. These labels may be adhered to the buttons . Pre-printed buttons are also available at time of order, and incur an additional charge.
|
 |
Somfy DecoFlex WireFree RTS 5 Wall SwitchWireless wall switch with built in RTS (Radio Technology Somfy) that may be personalized for intuitive control of five individual window coverings or five groups of window coverings. Up, down and stop functions and "My" favorite position on each channel. Can be installed independently or next to an existing light switch. Choice of 3 finishes (White, Ivory and Black).
|

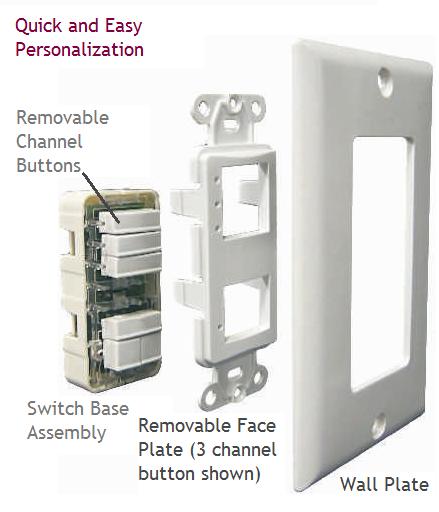

 DecoFlex 5-Channel Wall Switch  DecoFlex Example (Click to Enlarge) |
| SENSORS / TIMERS |
Somfy Telis RTS Impresario ChronisFor creating scenarios and running them in manual or automatic mode. Remote control to name, create and schedule recurrent situations (morning, evening, home theatre etc.) in the form of scenarios. Each scenario controls different shades simultaneously (rolling shutters, blinds, shades, draperies etc.) no matter where they are. You can create up to 16 "scenarios" using up to 40 motorized products selected according to time of day, season or activity. Each motorized product can go up or down or return to its "my" favorite position independently of all the others. Using the built-in clock, you can schedule the pre-defined scenarios as you choose, with up to 4 scenarios per day. The Automatic/Manual function can override the scheduled programming at any time. The range of operation can be increased by using RF Repeaters throughout the residence or office. Choice of 2 finishes (Silver and Lounge) Impressario Chronis Remote Specifications: • Communicates with all Somfy RTS RF Technology Devices • Manual and Automatic Control of up to 20 Motors • Programmable Automatic - Daily and Weekly Control • 65 Foot Control Range (Can be extended with RTS Repeater) • Dimensions: 6.75” H x 2.2” W x 1” D • Available in Silver or Black as shown • Includes: Wall Clip and mounting hardware • Power: 3V Lithium battery, CR-2430
|
 |
Somfy Chronis Comfort TimerProgram interior and exterior window coverings to raise or lower at certain times of the day to help manage heat gain in summer months and heat loss during the winter. Built-in security function may also be set so window coverings operate at a different time from one day to the next, creating a lived in look even while occupants are away from their home. Individual or group control possible with 4 timed functions per day. Secure rolling code to minimize interference with other radio products in the home. On-screen menu for simplified date and time configuration. Possible to program weekly or daily timed functions. Optional sun sensor sends window coverings to either the down or intermediate position in order to adjust to direct sunlight.
|
 Chronis Timer shown with optional sun sensor. |
|
Somfy Sunis Indoor WireFree RTS Sun Sensor Automatically adjusts window coverings to the changing sunlight to provide energy savings throughout the day. Compact design blends easily with interior decor. May be mounted on the window or table with a clear suction cup (included) for installation flexibility. Can also be turned on and off with an internal switch when not needed. Light sensitivity can be adjusted and controlled with an internal dial. Compatible with all somfy RTS motors and controls. Somfy 9013707 RTS Sun Sensor Specifications:
|

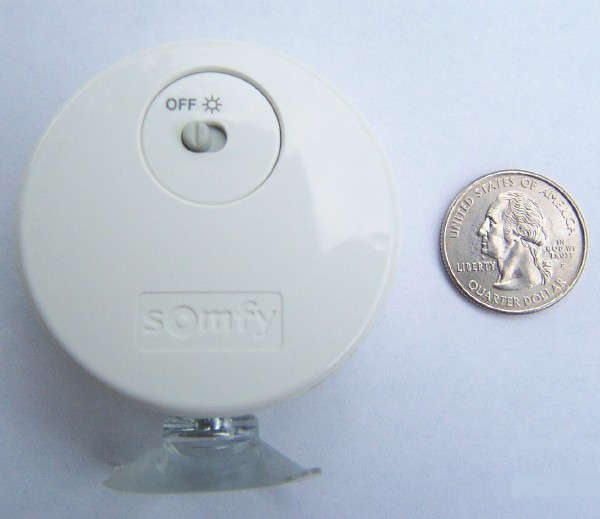

 Somfy Sunis Sun Sensor (Cover on)  Somfy Sunis Sun Sensor (Cover off) |
|
Somfy ThermoSunis Indoor WireFree RTS Sun & Temperature Sensor Automatically adjusts window coverings to the changing sunlight and indoor temperature to provide energy savings throughout the day. Compact design blends easily with interior decor. May be mounted on the window or table with a clear suction cup (included) for installation flexibility. Can also be turned on and off with an internal switch when not needed. Light and temperature sensitivity can be adjusted and controlled with an internal dials. Compatible with all somfy RTS motors and controls. Somfy 9013708 RTS Sensor Specifications:
|

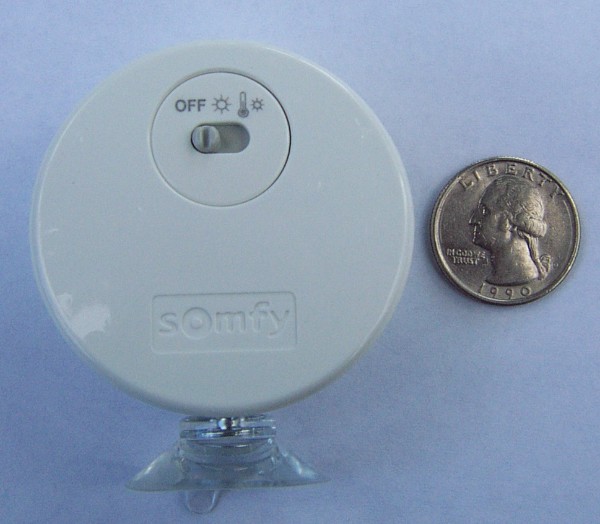

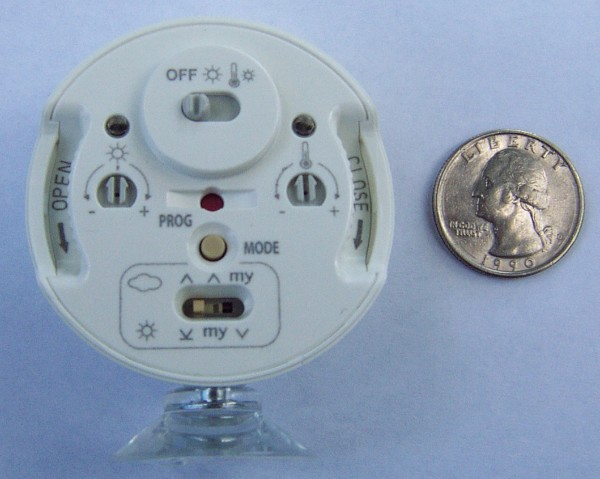

 Somfy ThermoSunis Sun Sensor (Cover on)  Somfy ThermoSunis Sun Sensor (Cover off) |
|
Somfy RTS Repeater - Range Expander The Somfy 1810791 RTS Repeater expands the range of all RTS controllers. Devices that previously might be out of range from a centrally located RTS transmitter can now be controlled by adding the RTS Repeater. This device simply plugs into the wall outlet and does not require any programming. The RTS repeater should be placed approximately halfway between the RTS Somfy motor and controller. The RTS Repeater receives the RTS Signal and rebroadcasts it. An LED is provided for confirmation that the unit is receiveing the RTS. Repeater has the same typical range of other transmitters at approximately 65 Ft. Note: Only 1-Repeater may be used per site installation. If 2-repeaters are used, they broadcast between themselves in an never ending loop. Somfy 1810791 RTS Repeater Specifications: • Dimensions: 4.125in H x 2.125in W x 1.375in D (Without Antenna)
|
 |
| PC & UNIVERSAL CONTROLS |
|

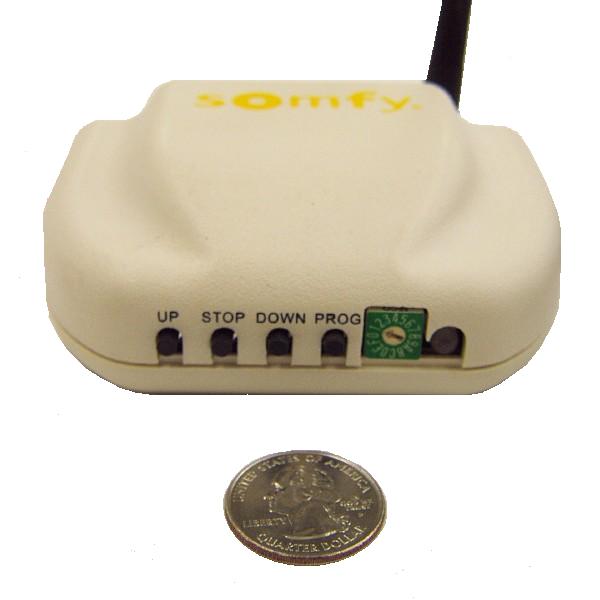

Somfy 16 Channel Universal RTS Interface

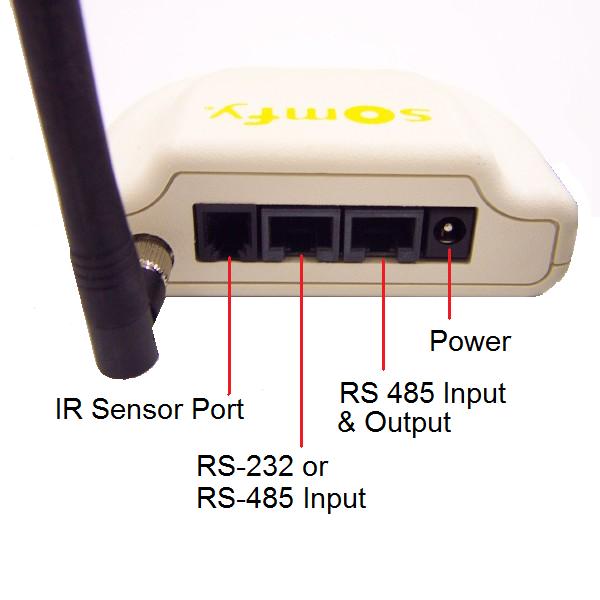

The addressable universal (RTS) interface can be used to communicate between home automation or other third party systems and Somfy (RTS) motors and controls. It is capable of individual or group control and can be operated via Infrared Remote (Part# 1810498), RS232 or RS485 serial communication. Once an input is activated, an (RTS) radio command is sent to the motorized window treatment. Up to 16 addressable channels are available.
Addtional Items Needed:
|
|
